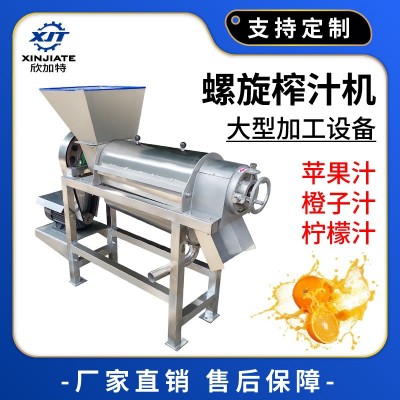

工業大型螺旋榨汁機 大型立式果蔬壓榨機 蘋果橙子葡萄榨汁機

商品描述

產品介紹-product description

-產品用途-

Product use

產品用途:適用于壓榨檸檬、菠蘿、蘋果、梨、桑棋、葡萄、桔子、橙子、西紅柿、生姜、芹菜、蘿卜等果蔬產品結構:由前支座、進料斗、螺旋、過濾網、盛汁器、后支座、出渣槽等零件組成，螺旋主軸左端支承于滾動軸承座內，右端支承于手輪軸承座中，電動機通過一對三角皮帶輪驅動螺旋進行工作。

工作原理:本設備的主要構件是螺旋，螺旋沿著料渣出口方向底徑逐漸加大而螺距逐漸減小，當物料被螺旋推進時，因螺旋腔體積的縮小，形成對物料的壓榨。螺旋主軸的轉動方向從進料斗向渣槽方向看去，為順針時方向。原料加入進料斗中，在螺旋的推進下受壓，其壓榨的汁液通過過濾網流入底部的盛汁器，而廢料則通過螺旋及調壓頭的錐形部分之間形成的空隙排出，調壓頭沿軸向的移動可調整空隙的大小。用手順時針(從設備的出渣槽向進料斗看)轉運手輪軸承座時，調壓頭向左，空隙即縮小，反之則空隙變大。改變空隙的大小，即調整出渣的阻力，即可改變出汁率，但如果空隙過小，在強力擠壓下，部分渣的顆粒會和汁一起通過過濾網被擠出，盡管出汁增加，但汁的質量相對下降，空隙的大小應視用戶具體工藝要求而定。
Product Usage: Suitable for pressing lemon, pineapple, apple, pear, mulberry, grape, orange, orange, tomato

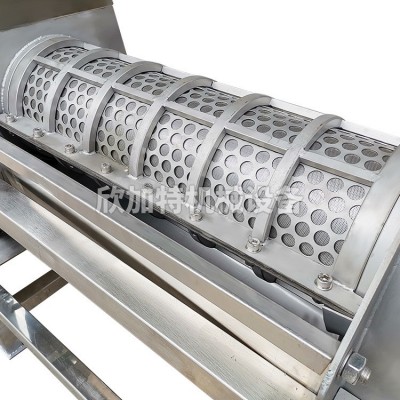

Structure of fruit and vegetable products such as ginger, celery, radish, etc.: Composed of front support, feed hopper, screw, filter screen, juice container, rear support, slag chute, etc. The left end of the screw spindle is supported in the rolling bearing seat, and the right end is supported in the handwheel bearing seat. The motor drives the screw to work through a pair of triangular belt pulleys.
Working principle: The main component of this equipment is the spiral, which gradually increases the bottom diameter along the direction of the slag outlet and decreases the pitch. When the material is pushed forward by the spiral, the volume of the spiral cavity decreases, forming a pressure on the material. The rotation direction of the spiral spindle is clockwise when viewed from the feeding hopper towards the slag groove. The raw materials are added to the feeding hopper and pressed under the push of the screw. The squeezed juice flows into the bottom juice container through the filter screen, while the waste is discharged through the gap formed between the screw and the conical part of the pressure regulating head. The movement of the pressure regulating head along the axial direction can adjust the size of the gap. When transferring the handwheel bearing seat clockwise by hand (looking from the slag discharge groove of the equipment to the feeding hopper), the pressure regulating head should be turned to the left, and the gap will be reduced. Otherwise, the gap will become larger. Changing the size of the gap, that is, adjusting the resistance of the residue, can change the juice yield. However, if the gap is too small, under strong compression, some of the residue particles will be squeezed out together with the juice through the filter screen. Although the juice yield increases, the quality of the juice will relatively decrease. The size of the gap should depend on the specific process requirements of the user.

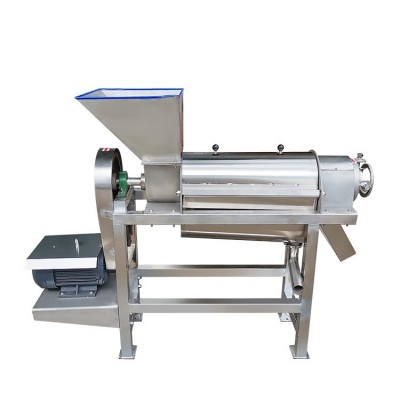

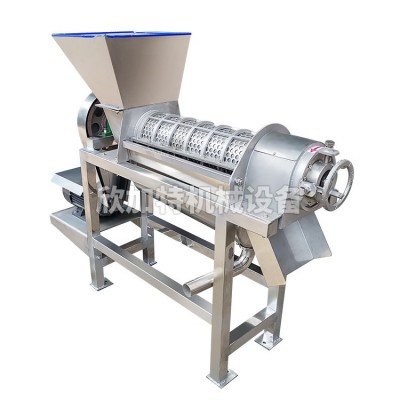

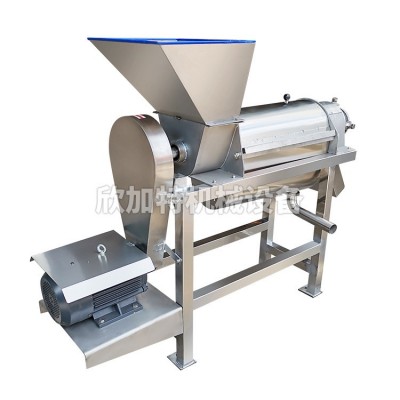

產品展示-Product display

-產品實拍 拒絕過度美化-

Refuse to over-beautify the product

~更多詳細內容，請咨詢客服了解~

公司簡介-Company Profile

-關于我們-

about us

      廣州欣加特機械設備有限公司成立于2007年，是廣州一家專業生產及銷售肉類加工設備、磨粉粉碎加工設備、果蔬加工設備、面制品烘培加工系列等食品機械的公司。可根據客戶提供非標定制、OEM代加工、并且提供相應流水線的配套應供方案。也許我們不是業內做得最大，但是一定做得用心，您的需求和想法，就是我們前行的方向和動力！
      廣州欣加特機械設備有限公司實力雄厚，重信用，守合同、保證產品質量，贏得了廣大客戶的信任。期盼您的隨時垂詢，早日成為您食品加工行業的合作伙伴！

Guangzhou Xinjiate Machinery Equipment Co., Ltd., founded in 2007, is a company specializing in the production and sales of meat processing equipment, milling and crushing processing equipment, fruit and vegetable processing equipment, flour products baking and processing series and other food machinery in Guangzhou. We can provide non-standard customization, OEM co processing, and supporting supply solutions for corresponding assembly lines according to customers. Perhaps we have not done the most in the industry, but we must do it carefully. Your needs and ideas are our direction and motivation!

Guangzhou Xinjiate Machinery Equipment Co., Ltd. has a strong strength, values credit, abides by contracts, and guarantees product quality, which has won the trust of customers. We look forward to your inquiry at any time and becoming your partner in the food processing industry as soon as possible!

我們承諾品質！

 專業專注食品設備    源頭工廠    品質有保障

欣加特

源頭工廠/售后保障

打造品質和好服務
